Creating an EC2 Linux and windows instance on AWS:

Following are the steps to create EC2 Linux and Windows instance:

  1. Login into you AWS system using User ID and Password

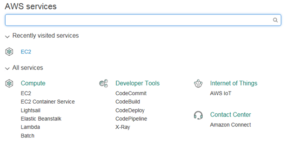

  2. Select EC2 instance under compute

EC2 Linux

3.Click on Launch instance to create instance under Resources

AWS





4.Select the AMI you want to create from the list Ex: Linux, Windows, SUSE

EC2 Linux

5. Click on Next configure Instance details:

Linux

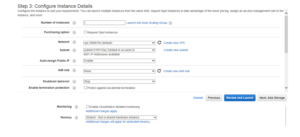

6.Enter the details :

AWS

No. of instances          : You can create more than 1 instance

Subnet                          : Select any item from dropdown list

Auto assigns Public IP:  Select Enable

Shutdown behavior    : Select stop

7. Click on Add volume to add the storage

EC2 Linux on AWS

Select the Volume type                                : EBS

Select the device from dropdown list        : /Dev/xxxxx

Size                                                                   : 8

Select Volume type from drop down list   : General purpose SSD(2)

Remain the Delete on Termination           : Unchecked

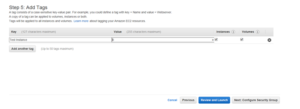

8.Click on Add Tags and enter key and value

EC2 Linux on AWS

9.Click on Next to configure security group : You can select the existing security group from drop down or create a new group

EC2 Linux on AWS

10.Review and Launch

EC2 Linux on AWS

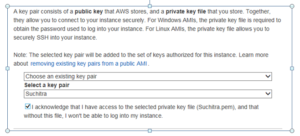

11.Create a new key pair : Download the key  pair and store it

EC2 Linux on AWS

Launch the Instance.

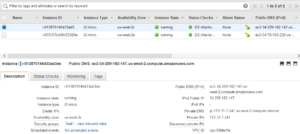

12.Click on View Instances

EC2 Linux on AWS

Creating an EC2 windows instance on AWS:

  1. Login into you system using User ID and Password
  2. Select EC2 instance under compute

EC2 Linux on AWS

3.Click on Launch instance to create instance under Resources

EC2 Linux on AWS

4.Select the AMI to create EC2 Windows base instance:

EC2 Linux on AWS

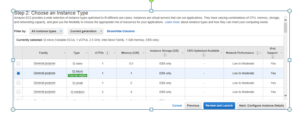

5.Select general purpose as this is going to be very simpler windows instance set up with 1 cpu,1 memory and click next

EC2 Linux on AWS

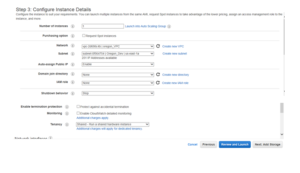

6.Click next configure instance details: and enter details

As I only want 1 instance

Default subnet settings

Leave the public IP enabled and leave remaining as it is

EC2 Linux on AWS

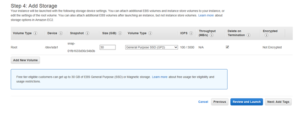

7.Click Next Add storage: By default it is going to have 30 bit and volume type select from drop down.

EC2 Linux on AWS

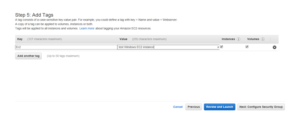

8.Click next Add Tags : Key is the name(entered as EC2 )and add value (test windows Ec2 instance.

EC2 Linux on AWS

9. Click Next to configure security group

EC2 Linux on AWS

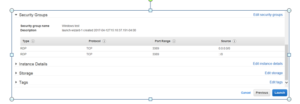

10. Next Click Review and Launch : Review all details

EC2 Linux on AWS

EC2 Linux on AWS

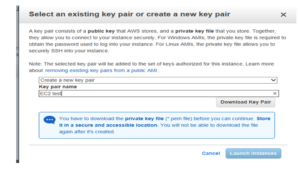

11.Click Launch and select create new key pair, click download key pair and save to folder.

EC2 Linux on AWS

12.Select Launch instances

EC2 Linux on AWS

13.Scroll down and select view instances

EC2 Linux on AWS

14.To test Instance Select Connect

EC2 Linux on AWS

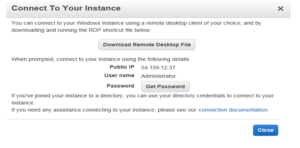

15.Click on get password and browse file .

EC2 Linux on AWS

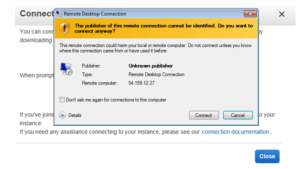

16.Download Remote Desktop file and connect to Remote desktop top

EC2 Linux on AWS

Remote Desktop connected successfully.
